STC Fluid Coupling
STC
STC

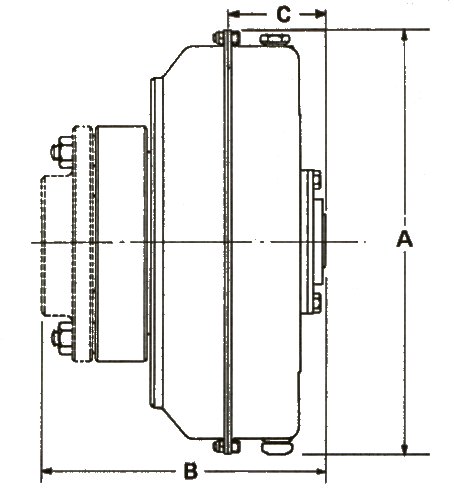

dimensions in mm
| Size | A | B | C | Weight |
|---|---|---|---|---|
| STC 350 | ||||
| STC 390 | 436.6 | 304.5 | 96.8 | 71 kilos |
| STC 450 | ||||
| STC 475 | 533.4 | 323.85 | 119.6 | 104 kilos |
| STC 500 | 571.5 | 323.85 | 122.23 | 117 kilos |
| STC 550 | ||||
| STC 600 |
| Ref number | Name of Part | No off |
|---|---|---|
| 1 | Impeller | 1 |
| 2 | Runner | 1 |
| 3 | Runner Casing | 1 |
| 4 | Shaft | 1 |
| 5 | Roller bearing | 1 |
| 6 | Ball bearing | 1 |
| 7 | Retaining plate | 1 |
| 8 | Diaphragm assembly | 1 |
| 9 | Shaft nut | 1 |
| 10 | Bearing distance piece | 1 |
| 11 | Shaft distance piece | 1 |
| 14 | Capscrew | 30, 36 or 40 |
| 16 | Counter sunk screw | 6 or 12 |
| 17 | Driving bolts | 6, 8 or 12 |
| 21 | Circlip | 1 |
| 28 | Bolt | 6 |
| 40 | Impeller casing | 1 |
| 42 | Fusible plug holder | 2 |
| 43 | Fusible plug | 2 | 44 | Bonded seal | 2 | 45 | Washer for 43 | 2 |
| 49 | Self locking nut | 40 |
| 50 | Washer plate | 1 |
| 50 | Plain washer | 6 |
| 51 | Self locking nut | 12 |
| 52 | SCHNORR washer | 6 |
| 55 | Ante chamber | 1 |
| 56 | Distance piece | 4 |
| 57 | Ante chamber screw | 4 |
| 58 | Impeller dowel | 4 | 59 | Lock nut for 57 | 4 |
| 60 | Self locking nut | 4 |
| 61 | 'O' ring | 1 |
| 62 | 'O' ring | 1 |
| 63 | 'O' ring | 4 |
| 65 | Setbolt for 78 | 3 |
| 66 | Roller | 2 |
| 69 | Self locking nut | 6 or 8 |
| 71 | Shim | 1 |
| 72 | Graphite bronze Floating ring | 1 |
| 73 | 'O' ring | 1 |
| 74 | 'O' ring | 1 |
| 75 | Spring | 6 |
| 157 | Gasket | 1 |
| 158 | Setscrew | 1 |
| 159 | Bonded seal | 1 |
| 200 | Adaptor | 1 |
| 244 | Capscrew | 8 |
| 245 | Dowel | 2 |
| 246 | SCHNORR washer | 8 |
