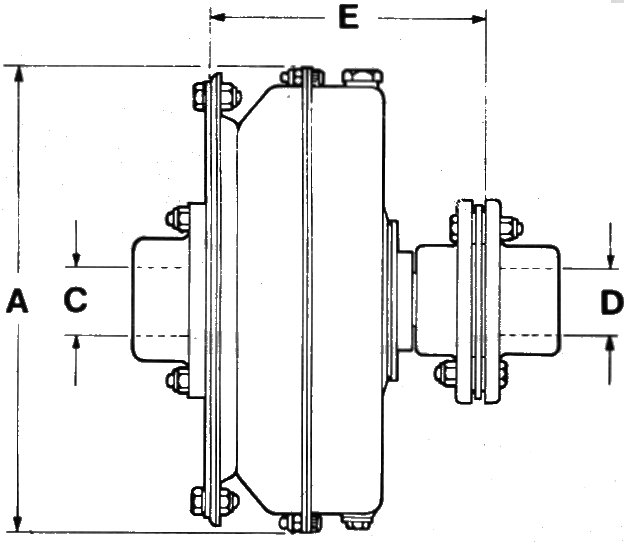

SFU Fluid Drive Details Dimensions and Parts

Size	A	C	D	E
SFU 300	351	60	60	222
SFU 350	398	80	60	237
SFU 390	437	80	70	267
SFU 450	505	85	83	324
SFU 500	572	85	83	340
SFU 550	632	110	100	406
SFU 600	708	110	100	429

Ref number	Name of Part	No off
1	Impeller	1
2	Runner	1
3	Runner Casing	1
4	Shaft	1
5	Roller bearing	1
6	Ball bearing	1
7	Retaining plate	1
8	Diaphragm assembly	1
9	Shaft nut	1
10	Bearing distance piece	1
11	Shaft distance piece	1
14	Casing bolts	30, 36 or 40
16	Runner bolts	6 or 12
17	Driving bolts	6, 8 or 12
18	Resilient driving plate	1
19	Driving boss	1
20	Driving boss bolts	6
21	Circlip	1
23	Runner half coupling	1
24	Multidisc coupling bolts	6
25	Multidisc plate	1
26	Driven half coupling	1
28	Setbolt / socket capscrew	5, 6, 10 or 12
40	Impeller casing	1
42	Filling plug	1 or 2
43	Fusible plug	1 or 2
44	Bonded seal	1 or 2
45	Washer for 43	1 or 2
46	Shaft end plate	1
49	Nut for 14	30, 36 or 40
50	Washer plate	1
50	Plain washer	6
51	Self locking nut for 16	6 or 12
52	Shakeproof washer	5, 6, 10 or 12
55	Ante chamber	1
56	Distance piece	4
57	Ante chamber screw	4
58	Impeller dowel	4
59	Lock nut for 57	4
60	Self locking nut	4
61	'O' ring	1
62	'O' ring	1
63	'O' ring	4
65	Setbolt for 78	3
66	Casing dowels	2
67	Setbolt for 46	2
69	Nut for 17	6, 8 or 12
70	Nut for 20	6
71	Gland shim	1
72	Graphite bronze Floating ring	1
73	'O' ring	1
74	'O' ring	1
75	Springs	6
76	Nut for 24	6
77	Spherical collars	6
78	Retaining plate	1
158	Drain plug	1
159	Bonded seal for 158	1
208	Joint	1
210	Key	1
