SCR Fluid Coupling
SCR 24R
SCR 24R

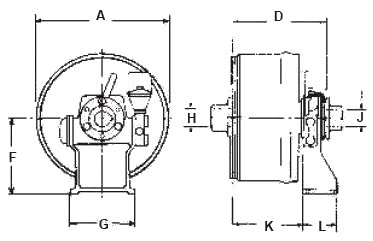

dimensions in mm
| Size | A | F | G | H | K | L | D | J |
|---|---|---|---|---|---|---|---|---|
| 18 | 629 | 355 | 324 | 85 | 321 | 152 | 406 | 76 |
| 20 | 692 | 355 | 324 | 85 | 337 | 152 | 422 | 76 |
| 23 | 789 | 457 | 387 | 110 | 406 | 190 | 527 | 100 |
| 26 | 891 | 457 | 387 | 110 | 445 | 190 | 565 | 100 |
| 29 | 1018 | 559 | 464 | 130 | 445 | 229 | 584 | 115 |
| 32 | 1108 | 559 | 464 | 130 | 543 | 229 | 683 | 115 |
| 36 | 1254 | 711 | 559 | 150 | 600 | 276 | 749 | 150 |
| 41 | 1413 | 711 | 559 | 150 | 664 | 276 | 813 | 150 |
| 46 | 1635 | 559 | 737 | 190 | 784 | 305 | 1016 | 165 |
| 52 | 1862 | 559 | 737 | 190 | 832 | 305 | 1063 | 165 |
