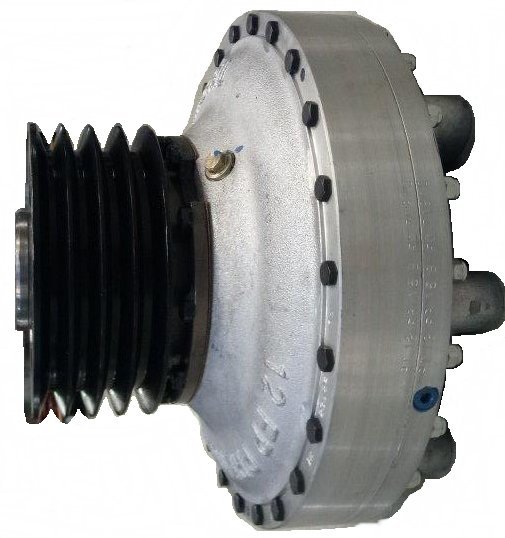

FP Pulley Fluid Coupling
FP
FP

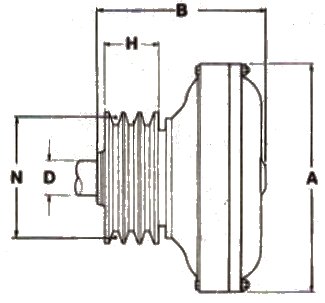

dimensions in mm
| Size | A | B | D | H | N | No of Grooves & Section |
|---|---|---|---|---|---|---|
| FP 7 | 211 | 176 | 33 | 36 | 140 | 2-A |
| FP 8 | 237 | 178 | 30 | 36 | 140 | 2-A |
| FP 9 | 268 | 192 | 35 | 48 | 152 | 2-B |
| FP 10 | 308 | 217 | 40 | 67 | 165 | 3-B |
| FP 11 | 333 | 246 | 48 | 82 | 170 | 4-B |
| FP 12 | 368 | 281 | 60 | 82 | 200 | 4-B |
| FP 14 | 419 | 326 | 60 | 101 | 200 | 5-B |
| FP 16 | 454 | 402 | 80 | 162 | 250 | 6-C |
| FB 17 | 502 | 404 | 80 | 162 | 250 | 6-C |
| Ref number | Name of Part | No off |
|---|---|---|
| 1 | Impeller | 1 |
| 2 | Runner | 1 |
| 3 | Casing | 1 |
| 4 | Shaft | 1 |
| 5 | Roller bearing | 1 |
| 6 | Ball bearing | 1 |
| 14 | Casing bolt | 24 |
| 15 | Baffle | 1 |
| 16 | Hexagon head bolt | 6 |
| 17 | Hexagon head screw | 10 |
| 21 | Circlip (external) | 1 |
| 22 | Filling plug | 2 |
| 22a | Sealing washer | 2 |
| 32 | Hexagon headed screw | 8 |
| 32a | Locking washer | 8 |
| 43 | Fusible plug | 1 |
| 43a | Washer | 1 |
| 49 | Self locking nut (casing / impeller) | 18, 24 or 36 |
| 52 | Locking washer | 10 |
| 66 | Dowel | 3 |
| 157 | Joint | 1 |
| 158 | Washer | 24 |
| 160 | Pulley sheave (if fitted) | 1 |
| 162 | Seal housing | 1 |
| 165 | O ring | 1 |
| 169 | Dowel | 4 |
| 173 | Oil seal | 1 |
| 174 | Circlip (external) | 1 |
| 175 | Circlip (internal) | 1 |
| 182 | Level plug | 2 |
| 183 | Sealing washer | 2 |
| 184 | Tie bolt | 1 |
| 186 | Socket head screw (cup point) | 6 |
| 188 | V ring seal | 1 |
| 189 | Tab washer | 3 |
| 190 | End cover | 1 |
| 191 | Pulley sleeve | 1 |
| 192 | Joint | 1 |
| 193 | Joint | 1 |
| 196 | Spacer (FP 17.75 only) | 1 |
| 201 | Backing washer (FP 16.25 / FP 17.75) | 1 |
| 205 | Socket head screw (cup point) | 1 |
| 209 | Sealing washer | 1 |
| 220 | Shaft plug | 1 |
